SikaBiresin® CR144 CH150-3

Composite resin system for RTM process with Tg up to 143 °C

SikaBiresin® CR144 CH150-3 is an epoxy resin system suited for the RTM process. It can be used to produce high performance FRP components.

  • Especially suited for dynamic curing cycles
  • Temperature resistant up to 140 °C
  • Low viscosity at elevated temperatures

Contact

PRODUCT BENEFITS

  • Especially suited for dynamic curing cycles
  • Temperature resistant up to 140 °C
  • Low viscosity at elevated temperatures


Areas of Application

SikaBiresin® CR144 CH150-3 is especially suited for injection processes with short cycle times such as for the production of automotive parts.
This product is suitable for experienced professional users only.
Tests under actual processing conditions and with additional materials such as fibres and release agents must be performed to proof material compatibility.

Packaging



SikaBiresin® CR144 (A)

Pail

10 kg

Drum200 kg
IBC1000 kg

SikaBiresin® CH150-3 (B)

Can

2.4 kg

Hobbock20 kg
Drum180 kg
IBC900 kg


Product Details

Typical Product Data
Properties

Component A

SikaBiresin® CR144

Component B

SikaBiresin® CH150-3

Chemical base

Epoxy resin

Amine hardener

Color

Translucent

Colorless

Density

liquid

cured

1.14 kg/l

0.94 kg/l

1.15 kg/l

Mixing ratio

by weight

by volume

100 : 24

100 : 29

Viscosity (CQP029-4)


mixed (25 °C)

mixed (60 °C)

mixed (80 °C)

12 000 mPa·s

20 mPa·s

1600 mPa·s

160 mPa·s

90 mPa·s

Pot life (CQP021-3 / Gel Timer TECAM)

60 minutes

Curing conditions

 4 hours

140 °C

Tensile strength (CQP036-2 / ISO 527)

87 MPa

Tensile modulus (CQP036-2 / ISO 527)

2700 MPa

Tensile elongation (CQP036-2 / ISO 527)

6.6 %

Flexural strength (CQP027-2 / ISO 178)

133 MPa

Flexural modulus (CQP027-2 / ISO 178)

2800 MPa

Compressive strength (CQP028-5 / ISO 604)

120 MPa

Shore D hardness (CQP023-1 / ISO 868)

84

Impact resistance (CQP038-2 / ISO 179)

42 kJ/m²

Glass transition temperature (CQP301-5 / ISO 11357)

143 °C

Heat deflection temperature (CQP030-1 / ISO 75B)

139 °C

Shelf life

24 months

12 months

CQP = Corporate Quality Procedure

Application

Application Information

Application

The resin system is optimized for injection temperatures between 45 °C – 80 °C. Consider the change in processing parameters if the resin system is processed at different temperatures. The mould temperature can vary depending on the process, for isothermal process 60 °C – 130 °C and for variothermal process 60 °C – 180 °C.

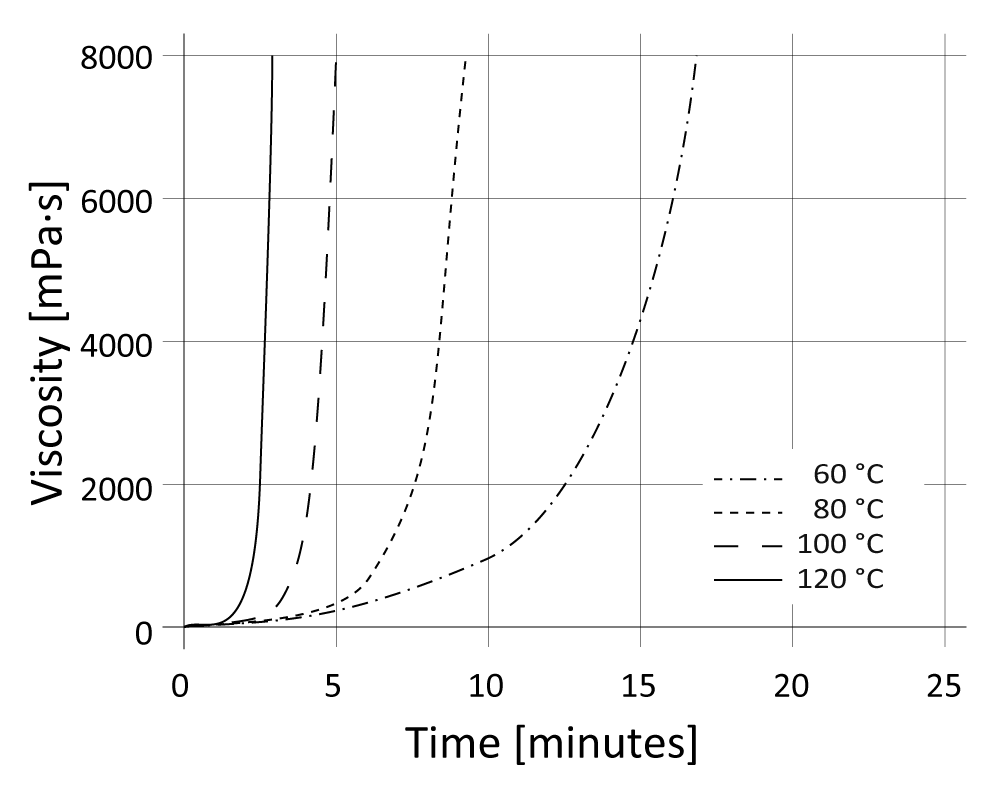

01-diagram-viscosity-CR144-CH150

Diagram 1: Viscosity development


Prior to application, check both components for crystallization. The crystallization process can be reversed by heating the product to 60 °C – 70 °C until the crystals are no longer visible.
Containers must be closed tightly immediately after each use to prevent moisture ingress.



Removal

Uncured SikaBiresin® CR144 CH150-3 can be removed from tools and equipment with Sika® Reinigungsmittel 5 or another suitable solvent. Once cured, the material can only be removed mechanically. Hands and exposed skin shall be washed immediately using industrial hand cleaner and water.
Do not use solvents on skin.

STORAGE CONDITIONS

All components must be stored between 15 °C – 30 °C.
Prior to use check the material for homogeneity and crystallization and make sure to temper it to processing temperature.
