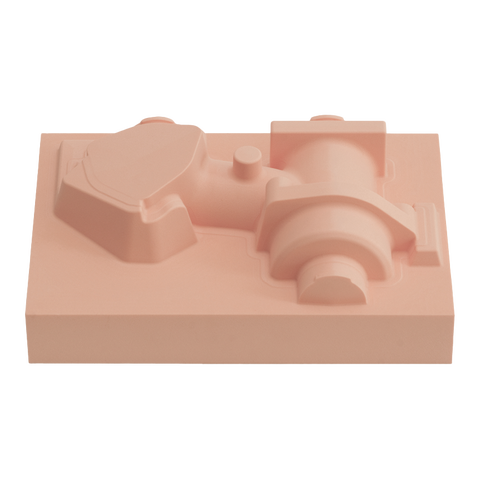

SikaBlock® M450 N

Polyurethane design board

SikaBlock® M450 N is a polyurethane design board for manufacture of substructure for design, styling and clay models as well as for cubing and data control models.

  • Easily workable by hand or CNC forming shavings and very low dust
  • Very good surface smoothness
  • Good strength and edge stability for its light density
  • Easy to seal and paint

Contact
Go
Show all documents

PRODUCT BENEFITS

  • Easily workable by hand or CNC forming shavings and very low dust
  • Very good surface smoothness
  • Good strength and edge stability for its light density
  • Easy to seal and paint


Areas of Application

SikaBlock® M450 N is perfectly suited for manufacture of substructure for design, styling and clay models.
It is also recommended for manufacture of styling models and design studies. The product is also designed for manufacture of substructure for cubing and data control models as well as for short serie mold-making for composites parts by hand lay-up or vacuum infusion. This product is suitable for experienced professional users only. Tests under actual processing conditions and with additional materials such as coatings and release agents must be performed to proof material compatibility.

Packaging

Dimensions [mm]

Pcs./pallet

1500 x 500 x 50

1500 x 500 x 75

1500 x 500 x 100

1500 x 500 x 150

1500 x 500 x 200

36
24
18
12
8

Larger format in 2000 x 1000 mm is possible upon demand

Product Details

Typical Product Data
Chemical base

Polyurethane

Color

Orange

Density

0.43 kg/l

Shore D hardness (CQP023-1 / ISO 868)

45

Compressive strength (ISO 844)

11 MPa

Flexural strength (CQP027-2 / ISO 178)

12 MPa

Flexural modulus (CQP027-2 / ISO 178)

450 MPa

Linear coefficient of thermal expansion (CQP053-1 / ISO 11359)

55 – 60 x 10-6 1/K

Service temperature

-30 ─ 70 °C

CQP = Corporate Quality Procedure

Application

Application Information

Application

SikaBlock® M450 N can be easily machined by milling, drilling, sawing or modified manually. It is recommended to use high performance tools to machine these boards.
For milling parameters check information from cutting tool manufacturers or get the General Guideline “Milling parameters for SikaBlock®” for more general information.

STORAGE CONDITIONS

The board needs to be stored flat over the entire surface in dry conditions.
Many models and tools are made of bonded boards, either with identical or other materials. Storage at low and elevated temperature can lead to high stresses due to the different expansion coefficients. To prevent this, it is necessary to store the models and tools at a temperature range between 15 °C and 30 °C.
