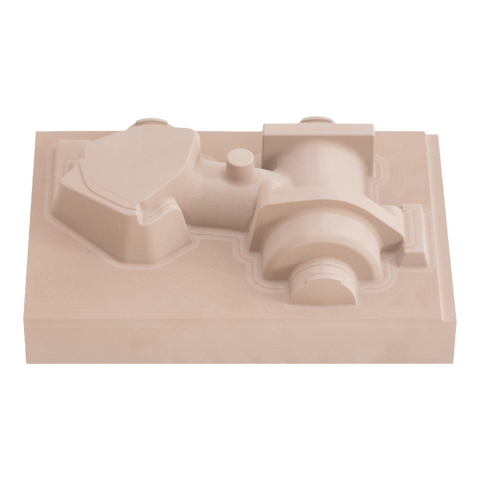

SikaBlock® M700 N

Polyurethane model board

SikaBlock® M700 N is a polyurethane model board for data control models and cubings.

  • Easy machinability
  • Low dust formation when milled
  • Dense fine surface
  • Easy to seal and to varnish
  • Very high dimensional stability
  • Good compressive strength and edge
    stability
  • Good heat distortion temperature

Contact
Go

PRODUCT BENEFITS

  • Easy machinability
  • Low dust formation when milled
  • Dense fine surface
  • Easy to seal and to varnish
  • Very high dimensional stability
  • Good compressive strength and edge
    stability
  • Good heat distortion temperature


Areas of Application

SikaBlock® M700 N is perfectly suited for data control models and cubings.
It is also recommended for master models and negatives.
The product is also designed for molds with low pressure (RIM) casting as well as for vacuum forming molds for lower number of pieces. This product is suitable for experienced professional users only. Tests under actual processing conditions and with additional materials such as coatings and release agents must be performed to proof material compatibility.

Packaging

Dimensions [mm]Pcs./pallet

1500 x 500 x 30

1500 x 500 x 50

1500 x 500 x 75

1500 x 500 x 100

1500 x 500 x 150

1500 x 500 x 200

30

36

24

18

12

8

Product Details

Typical Product Data
Chemical base

Polyurethane

Color

Light brown

Density

0.7 kg/l

Shore D hardness (CQP023-1 / ISO 868)

64

Flexural strength (CQP027-2 / ISO 178)

25 MPa

Flexural modulus (CQP027-2 / ISO 178)

1100 MPa

Heat deflection temperature (CQP030-1 / ISO 75B)

78 °C

Glass transition temperature (CQP053-1 / ISO 11359)

86 °C

Linear coefficient of thermal expansion (CQP053-1 / ISO 11359)

55 x 10-6 1/K

CQP = Corporate Quality Procedure

Application

Application Information

Application

SikaBlock® M700 N can be easily machined by milling, drilling, sawing or modified manually. It is recommended to use high performance tools to machine these boards.
For milling parameters check information from cutting tool manufacturers or get the General Guideline “Milling parameters for SikaBlock®” for more general information.

STORAGE CONDITIONS

The board needs to be stored flat over the entire surface in dry conditions.
Many models and tools are made of bonded boards, either with identical or other materials. Storage at low and elevated temperature can lead to high stresses due to the different expansion coefficients. To prevent this, it is necessary to store the models and tools at a temperature range between 15 °C and 30 °C.
