SikaBlock® LAB 1000

Polyurethane tooling board

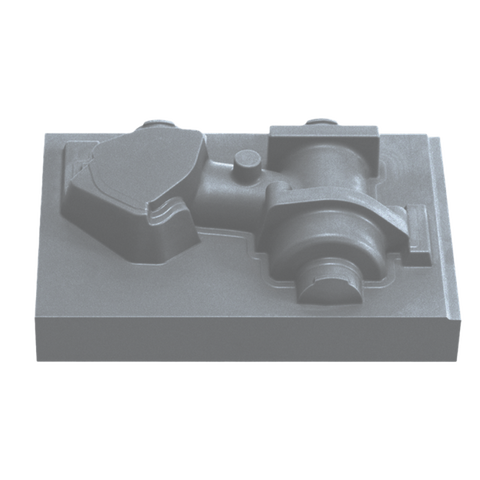

SikaBlock® LAB 1000 is a grey polyurethane tooling board for gauges and checking fixtures.

  • Good milling properties
  • Dense, fine surface
  • Very low coefficient of thermal expansion
  • Very high compressive strength and stiffness

Contact

PRODUCT BENEFITS

  • Good milling properties
  • Dense, fine surface
  • Very low coefficient of thermal expansion
  • Very high compressive strength and stiffness


Areas of Application

SikaBlock® LAB 1000 is well suited for gauges and checking fixtures.
It is also designed for vacuum forming molds and metal sheet forming tools.
This product is suitable for experienced professional users only. Tests under actual processing conditions and with additional materials such as coatings and release agents must be performed to proof material compatibility.

Packaging

Dimensions [mm]

Pcs./pallet

830 x 500 x 50

830 x 500 x 75

830 x 500 x 100

20

13

10

Product Details

Typical Product Data
Chemical base

Polyurethane

Color

Grey

Density

1.67 kg/l

Shore D hardness (CQP023-1 / ISO 868)

88

Compressive strength (CQP028-5 / ISO 604)

115 MPa

Flexural strength (CQP027-2 / ISO 178)

90 MPa

Flexural modulus (CQP027-2 / ISO 178)

7300 MPa

Heat deflection temperature (CQP030-1 / ISO 75B)

95 °C

Glass transition temperature (CQP053-1 / ISO 11359)

95 °C

Linear coefficient of thermal expansion (CQP053-1 / ISO 11359)

45 x 10-6 1/K

CQP = Corporate Quality Procedure

Application

Application Information

Application

SikaBlock® LAB 1000 can be easily machined by milling, drilling, sawing or modified manually. It is recommended to use high performance tools to machine these boards.
For milling parameters check information from cutting tool manufacturers or get the General Guideline “Milling parameters for SikaBlock®” for more general information.

STORAGE CONDITIONS

The board needs to be stored flat over the entire surface in dry conditions.
Many models and tools are made of bonded boards, either with identical or other materials. Storage at low and elevated temperature can lead to high stresses due to the different expansion coefficients. To prevent this, it is necessary to store the models and tools at a temperature range between 15 °C and 30 °C.
