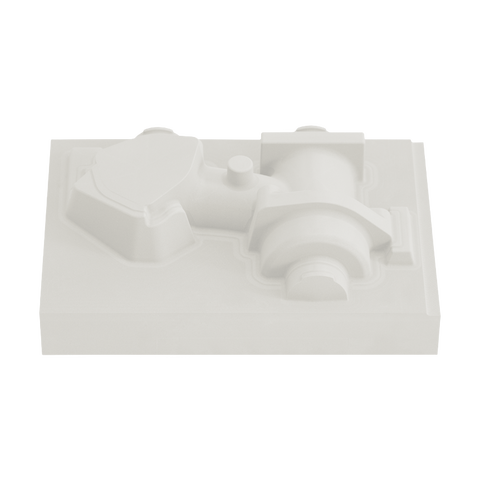

SikaBlock® M1000

Polyurethane tooling board

SikaBlock® M1000 is a white polyurethane tooling board with low density for true-size gauges and molds.

  • Low density for good handling
  • Good edge stability
  • High heat deflection temperature
  • Low coefficient of thermal expansion
  • Easy to machine

Contact
Go

PRODUCT BENEFITS

  • Low density for good handling
  • Good edge stability
  • High heat deflection temperature
  • Low coefficient of thermal expansion
  • Easy to machine


Areas of Application

SikaBlock® M1000 is well suited for true-size gauges and molds as well as for foundry patterns.
It is also designed for complex master models.
This product is suitable for experienced professional users only. The boards must be tested for the specific application in each case, e.g. type of sand molding process, binder, amine catalyst, etc.

Packaging

Dimensions [mm]Pcs./pallet

1500 x 500 x 50

1500 x 500 x 75

1500 x 500 x 100

28

18

14

Product Details

Typical Product Data
Chemical base

Polyurethane

Color

White

Density

1.0 kg/l

Shore D hardness (CQP023-1 / ISO 868)

75

Compressive strength (CQP028-5 / ISO 604)

47 MPa

Flexural strength (CQP027-2 / ISO 178)

48 MPa

Flexural modulus (CQP027-2 / ISO 178)

1800 MPa

Impact resistance (CQP038-2 / ISO 179)

13 kJ/m2

Heat deflection temperature (CQP030-1 / ISO 75B)

85 °C

Linear coefficient of thermal expansion (CQP053-1 / ISO 11359)

55 x 10-6 1/K

CQP = Corporate Quality Procedure

Application

Application Information

Application

SikaBlock® M1000 can be easily machined by milling, drilling, sawing or modified manually. It is recommended to use high performance tools to machine these boards.
For milling parameters check information from cutting tool manufacturers or get the General Guideline “Milling parameters for SikaBlock®” for more general information.

STORAGE CONDITIONS

The board needs to be stored flat over the entire surface in dry conditions.
Many models and tools are made of bonded boards, either with identical or other materials. Storage at low and elevated temperature can lead to high stresses due to the different expansion coefficients. To prevent this, it is necessary to store the models and tools at a temperature range between 15 °C and 30 °C.
