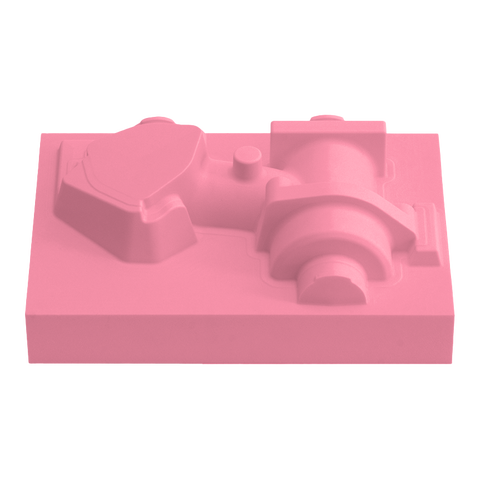

SikaBlock® ML45 PK

Polyurethane design board

SikaBlock® ML45 PK is a polyurethane design board for manufacture of design, styling and master-models.

  • Easy CNC milling giving mostly shavings
  • Compact surface being smooth with reduced porosity
  • Easy sealing and painting with less layers required
  • High strength and edge stability for its light density

Contact

PRODUCT BENEFITS

  • Easy CNC milling giving mostly shavings
  • Compact surface being smooth with reduced porosity
  • Easy sealing and painting with less layers required
  • High strength and edge stability for its light density


Areas of Application

SikaBlock® ML45 PK is perfectly suited for manufacture of design, styling and master-models.
It is also recommended for manufacture of composite mold for low series of laminated parts.
The product is also designed for manufacture of substructure for cubing and data control models. This product is suitable for experienced professional users only. Tests under actual processing conditions and with additional materials such as coatings and release agents must be performed to proof material compatibility.

Packaging

Dimensions [mm]Pcs./pallet

1500 x 500 x 50

1500 x 500 x 75

1500 x 500 x 100

1500 x 500 x 150

24
16
12
8

Product Details

Typical Product Data
Chemical base

Polyurethane

Color

Pink

Density

0.45 kg/l

Shore D hardness (CQP023-1 / ISO 868)

45

Compressive strength (ISO 844)

10 MPa

Flexural strength (CQP027-2 / ISO 178)

12 MPa

Thermal conductivity (ASTM C-518)

0.078 W/(m·K)

Linear coefficient of thermal expansion (CQP053-1 / ISO 11359)

55 x 10-6 1/K

Service temperature

-30 ─ 65 °C

CQP = Corporate Quality Procedure

Application

Application Information

Application

SikaBlock® ML45 PK can be easily machined by milling, drilling, sawing or modified manually. It is recommended to use high performance tools to machine these boards.
For milling parameters check information from cutting tool manufacturers or get the General Guideline “Milling parameters for SikaBlock®” for more general information.

STORAGE CONDITIONS

The board needs to be stored flat over the entire surface in dry conditions.
Many models and tools are made of bonded boards, either with identical or other materials. Storage at low and elevated temperature can lead to high stresses due to the different expansion coefficients. To prevent this, it is necessary to store the models and tools at a temperature range between 15 °C and 30 °C.
